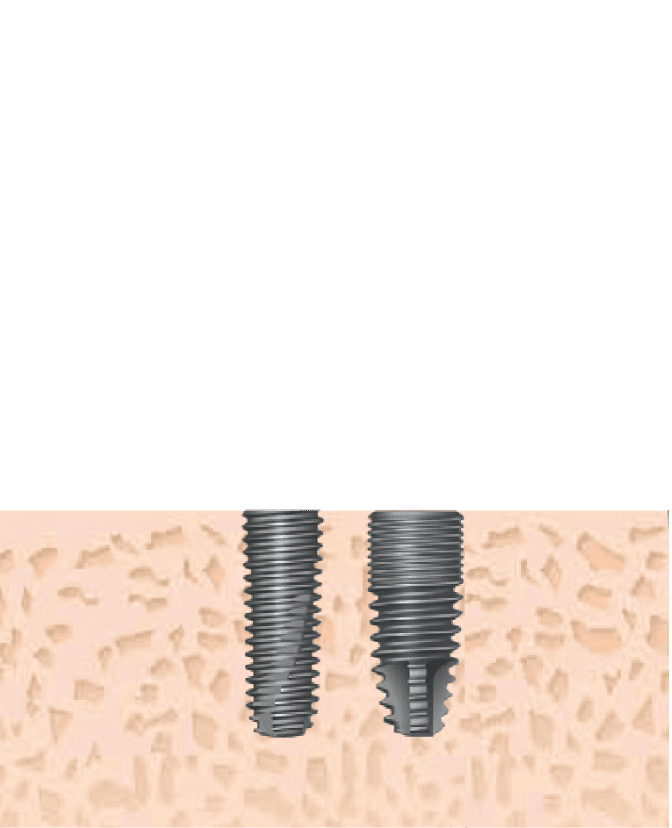

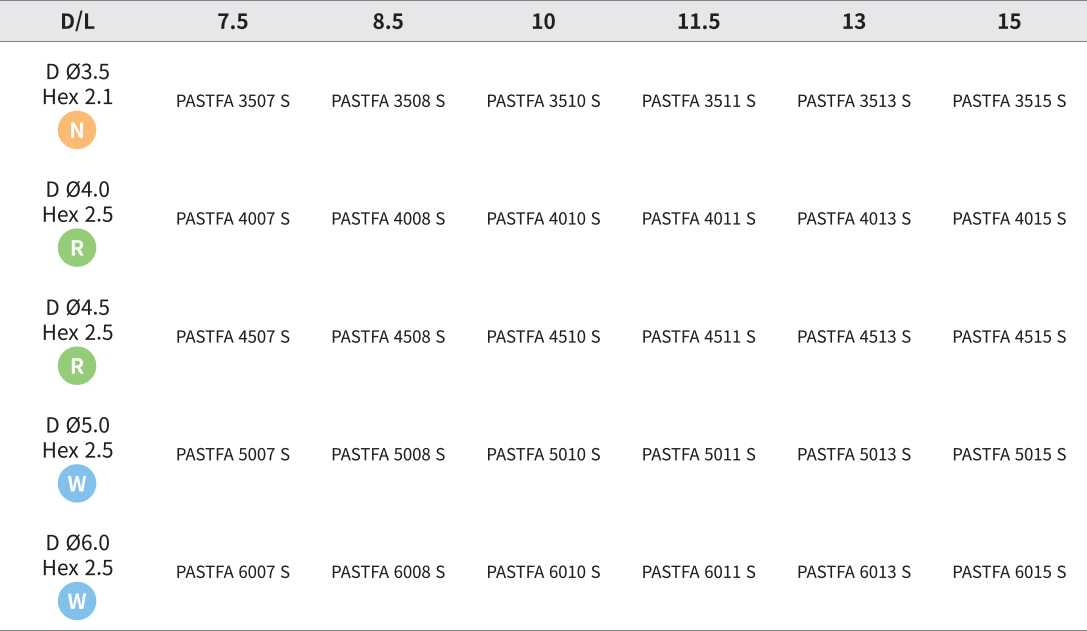

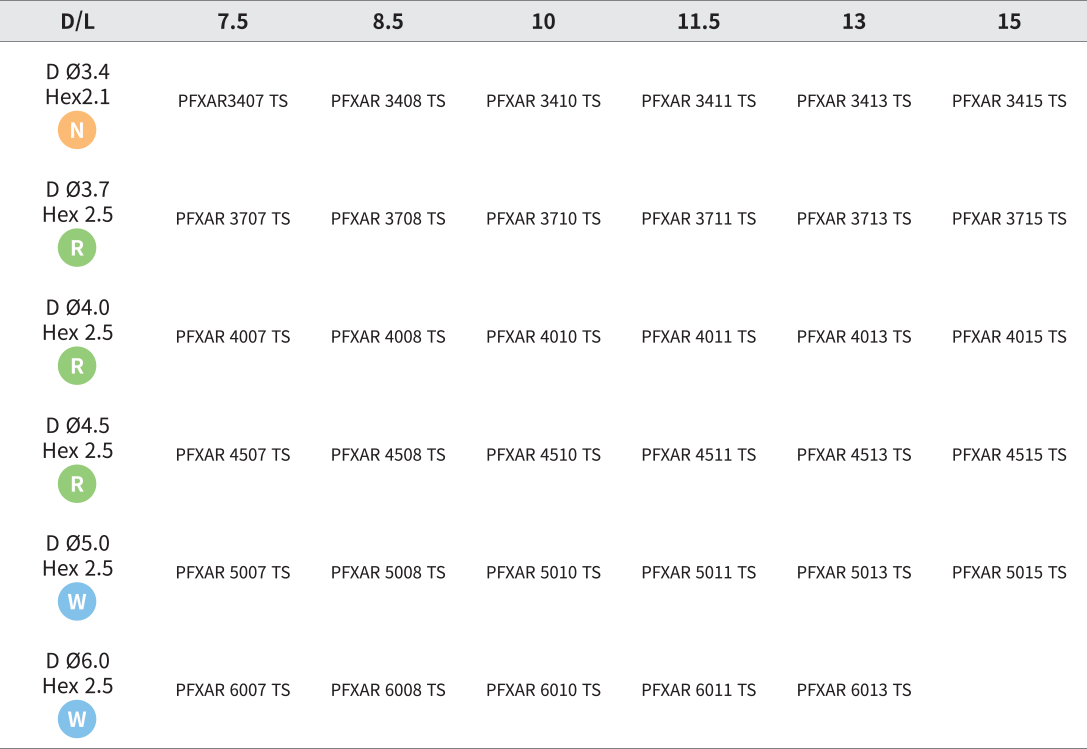

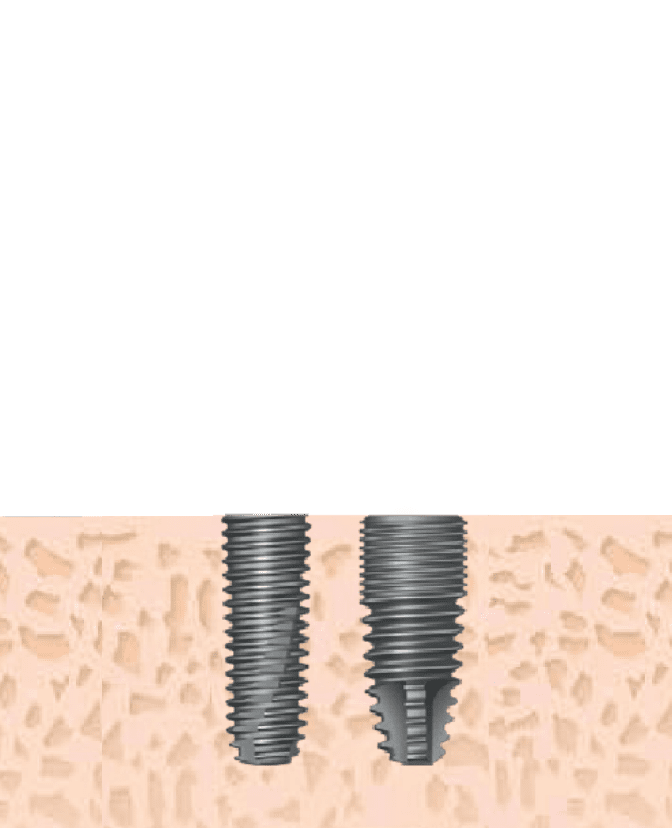

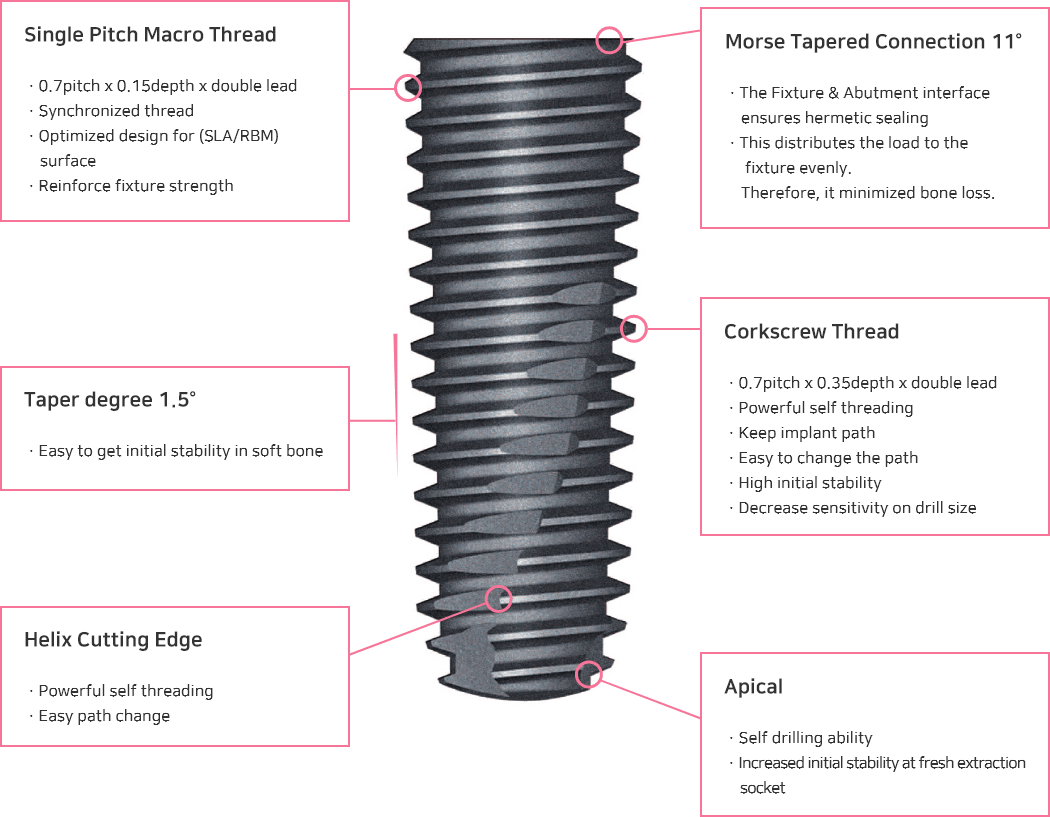

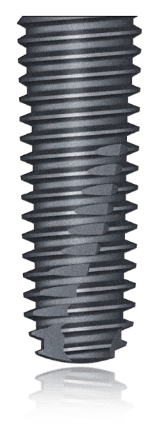

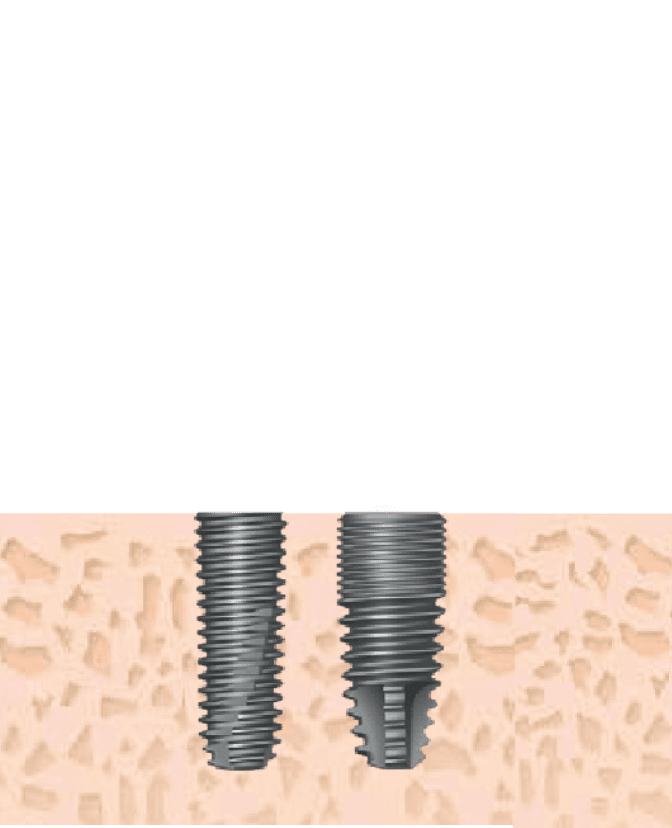

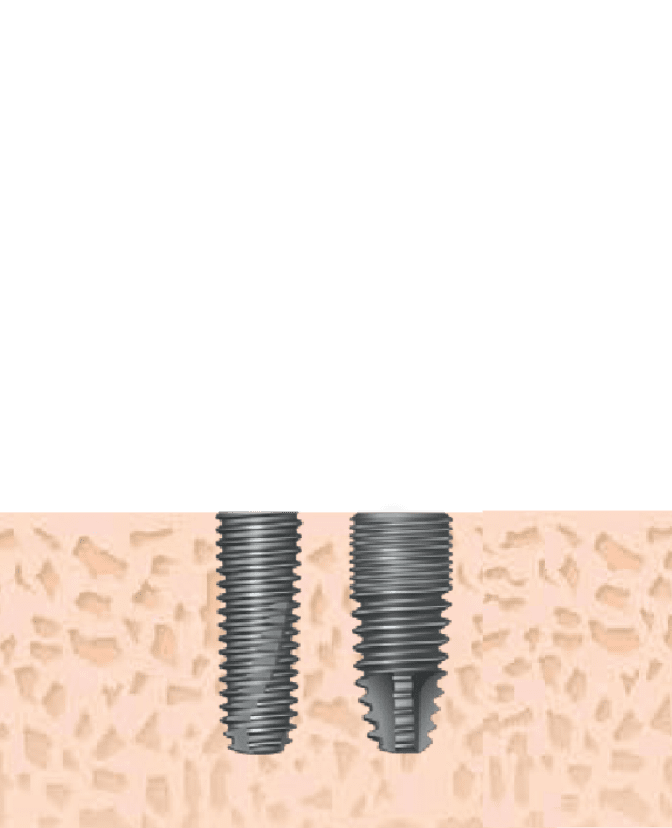

NON-MICRO THREAD BL FIXTURE (SLA)

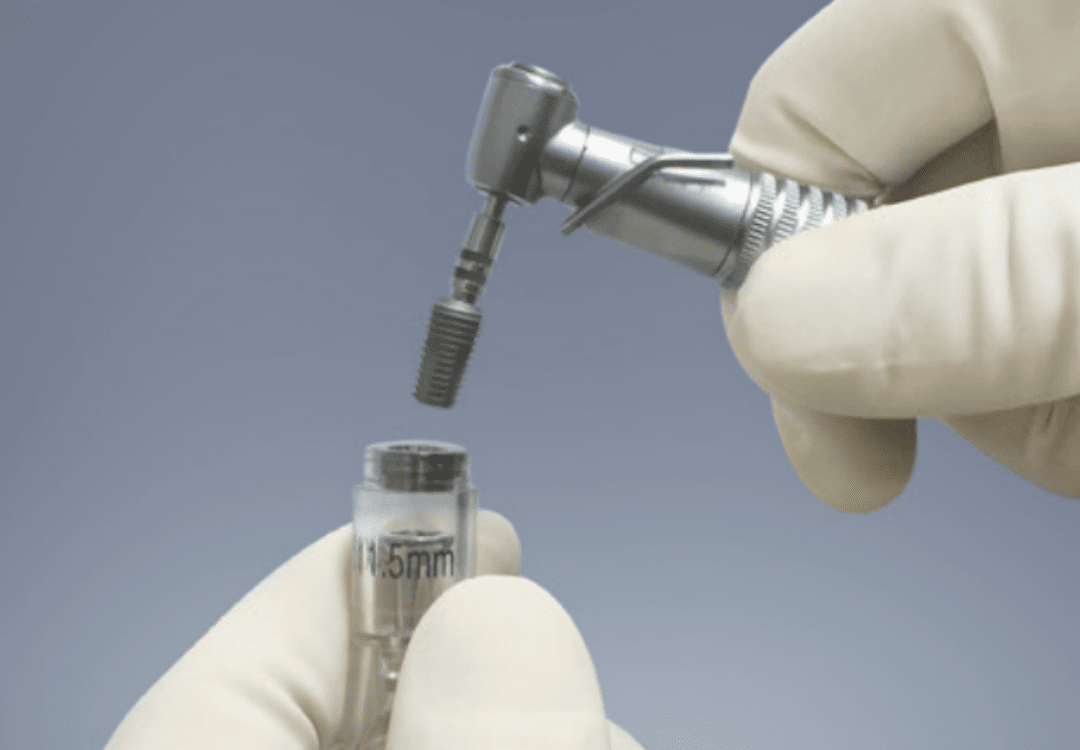

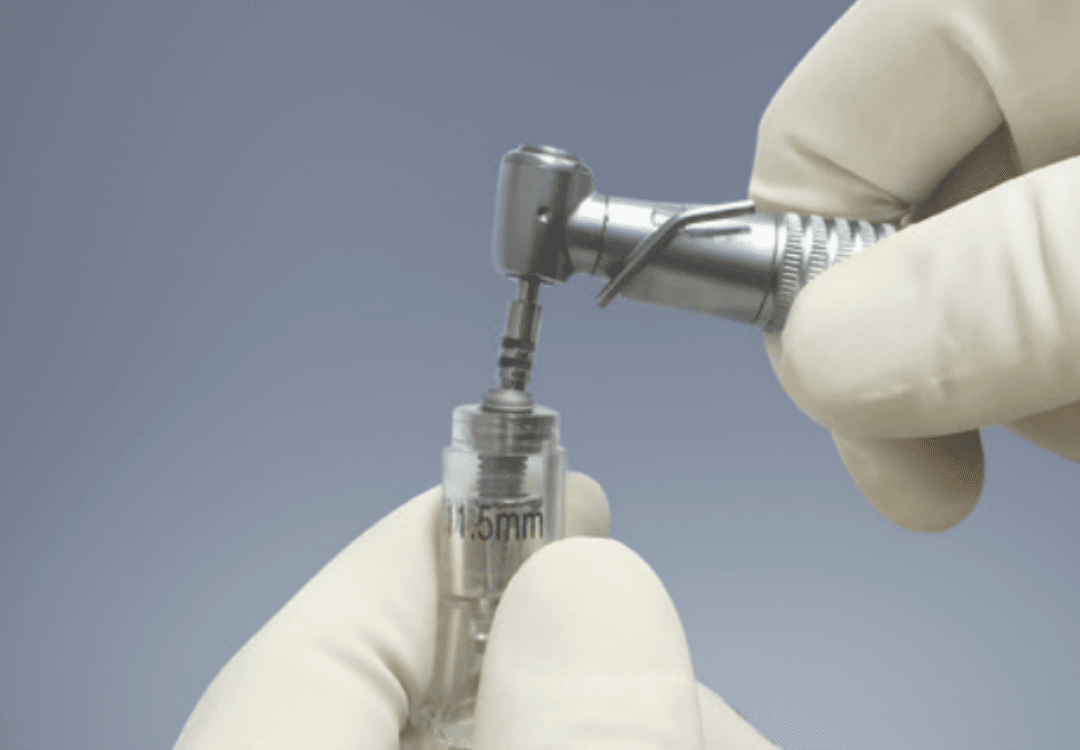

No Mount System : Using a special fixture driver with more durability and easy separation-connection to fixture

Surface : SLA

Recommended placement torque : Less than 40Ncm

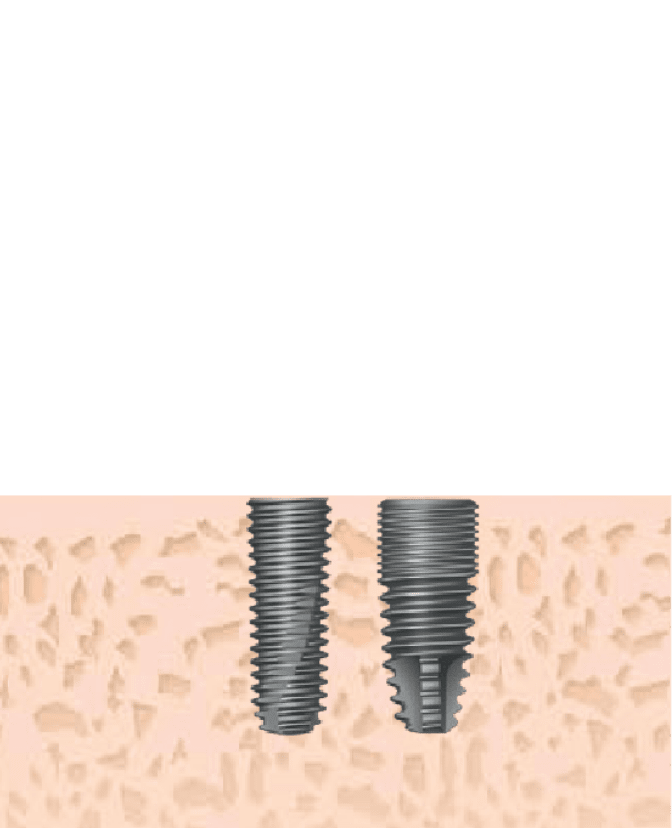

Tapered angle for maxillary

Tapered BL Fixture | SLA

Ø 4.0, Ø 5.0 fixture : Expanded Platform (Ø 3.4 fixture is excluded)

No Mount System : Using a special fixture driver with more durability and easy separation-connection to fixture

Surface : SLA

Recommended placement torque : Less than 40Ncm

COVER SCREW

Using a 1.2 Hex Driver

Fastening torque : 5~8Ncm

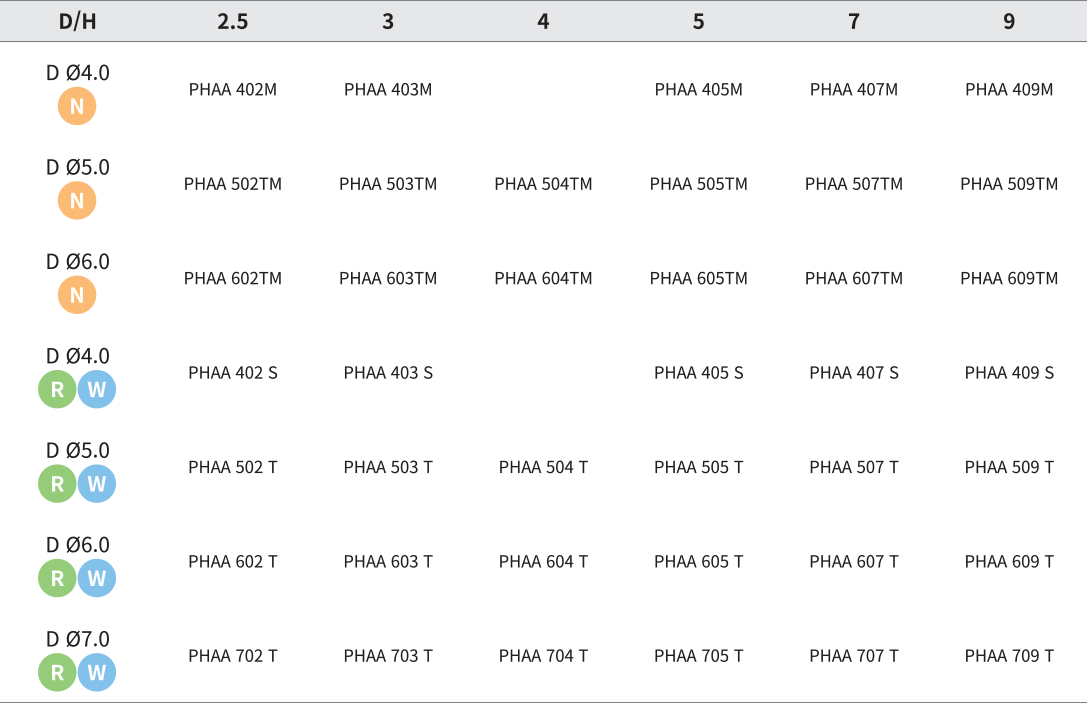

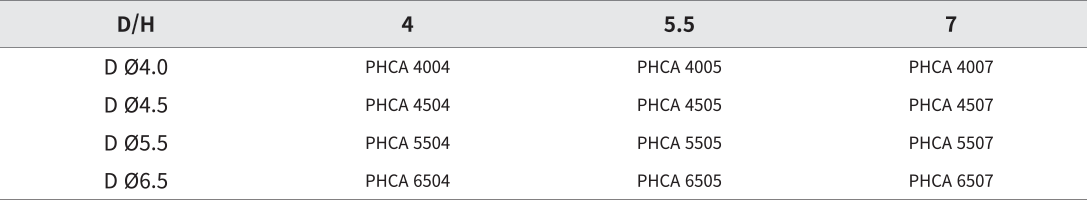

HEALING ABUTMENT

Using a 1.2 Hex Driver

Fastening torque : 5~8Ncm

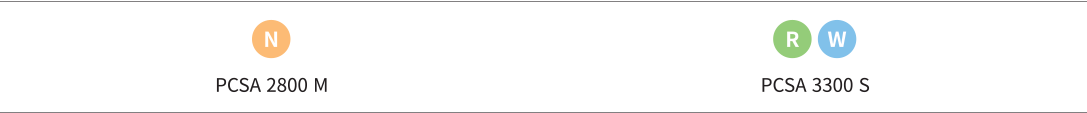

SOLID ABUTMENT

An abutment combined with a set screw, for a bridge prosthesis

Using a 1.2 Hex Driver

Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

Protect cap is optional

PROTECTIVE CAP

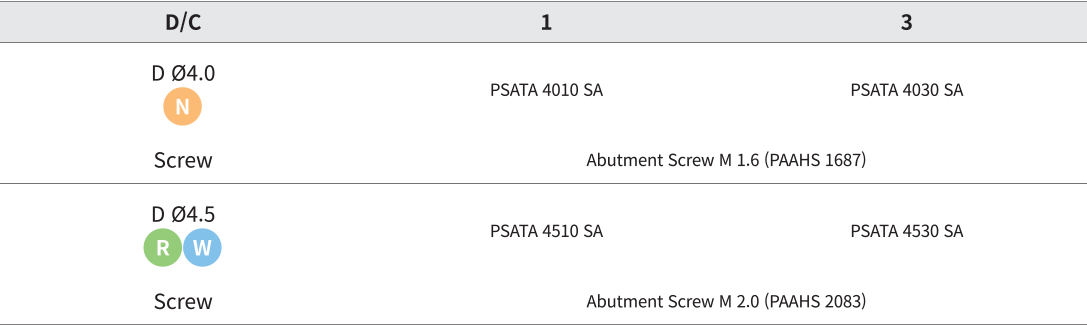

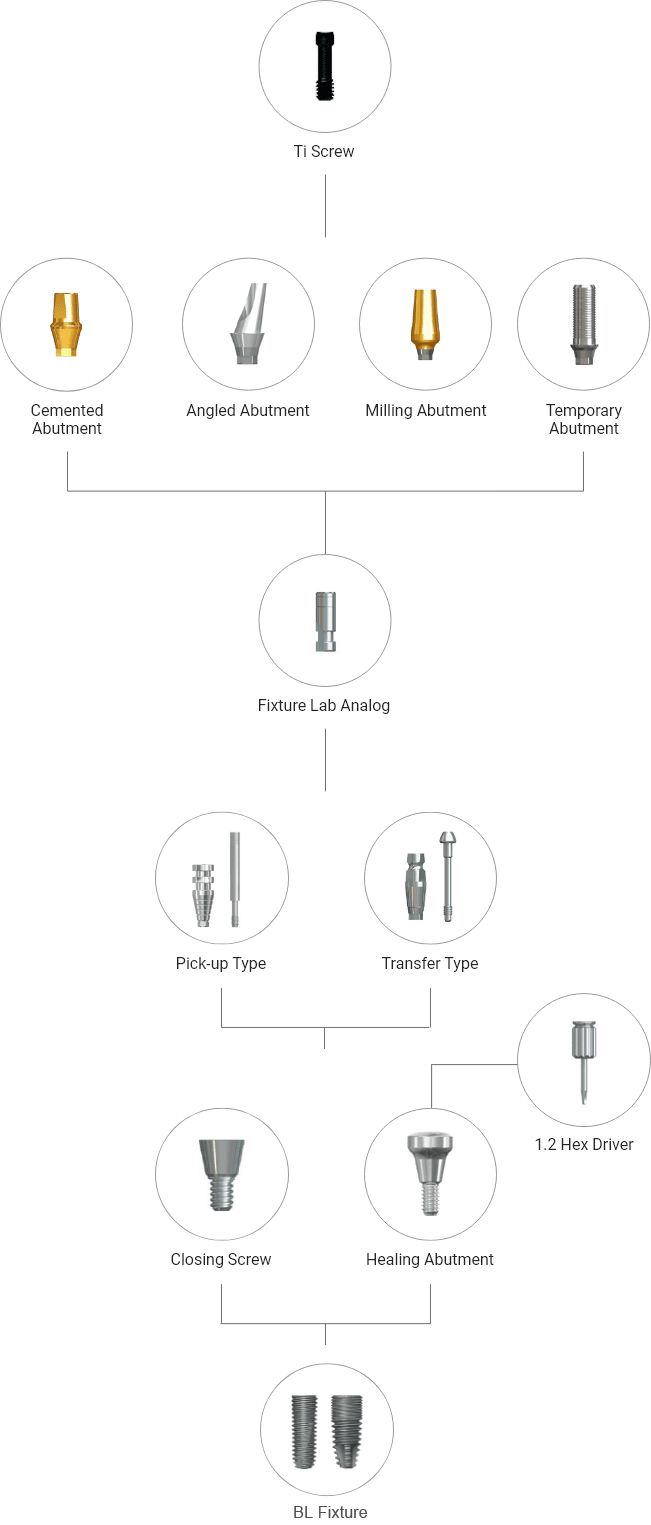

Cemented Abutment (Hex)

An abutment for a single prosthesis.

Using a 1.2 Hex Driver

Fastening torque : Narrow 20Ncm
Regular / Wide 30Ncm

Protect cap is optional

Cemented Abutment (Non-Hex)

An abutment combined with a set screw, for a bridge prosthesis

Using a 1.2 Hex Driver

Fastening torque : Narrow 20Ncm
Regular / Wide 30Ncm

Protect cap is optional

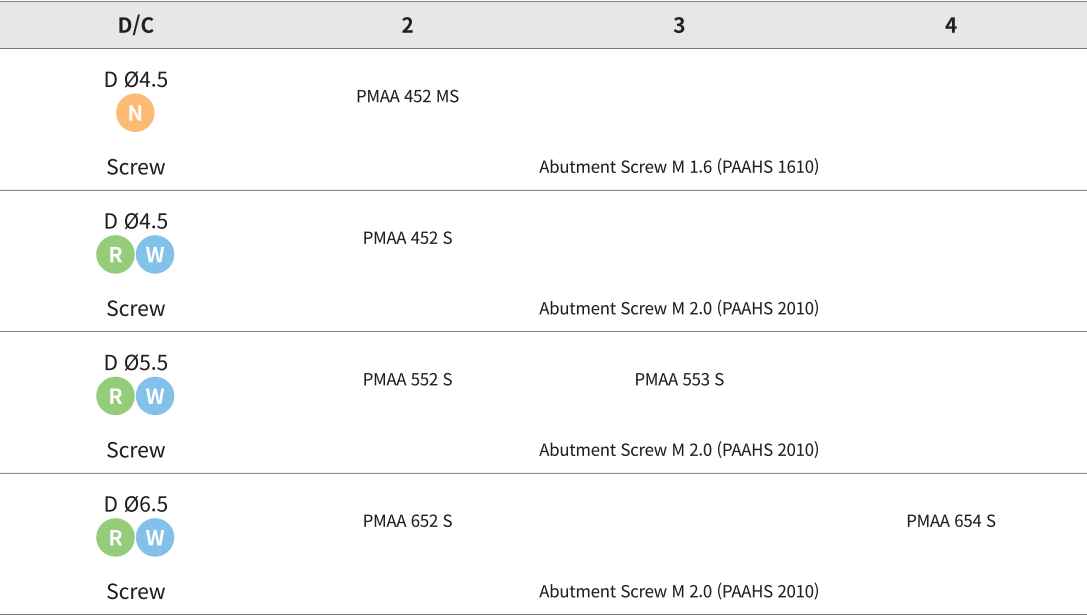

Milling Abutment (Hex)

Using a 1.2 Hex Driver

Fastening torque : Narrow 20Ncm
Regular / Wide 30Ncm

Temporary Abutment (Hex)

Fastening torque : Narrow 20Ncm
Regular / Wide 30Ncm

Temporary Abutment (Non-Hex)

Fastening torque : Narrow 20Ncm
Regular / Wide 30Ncm

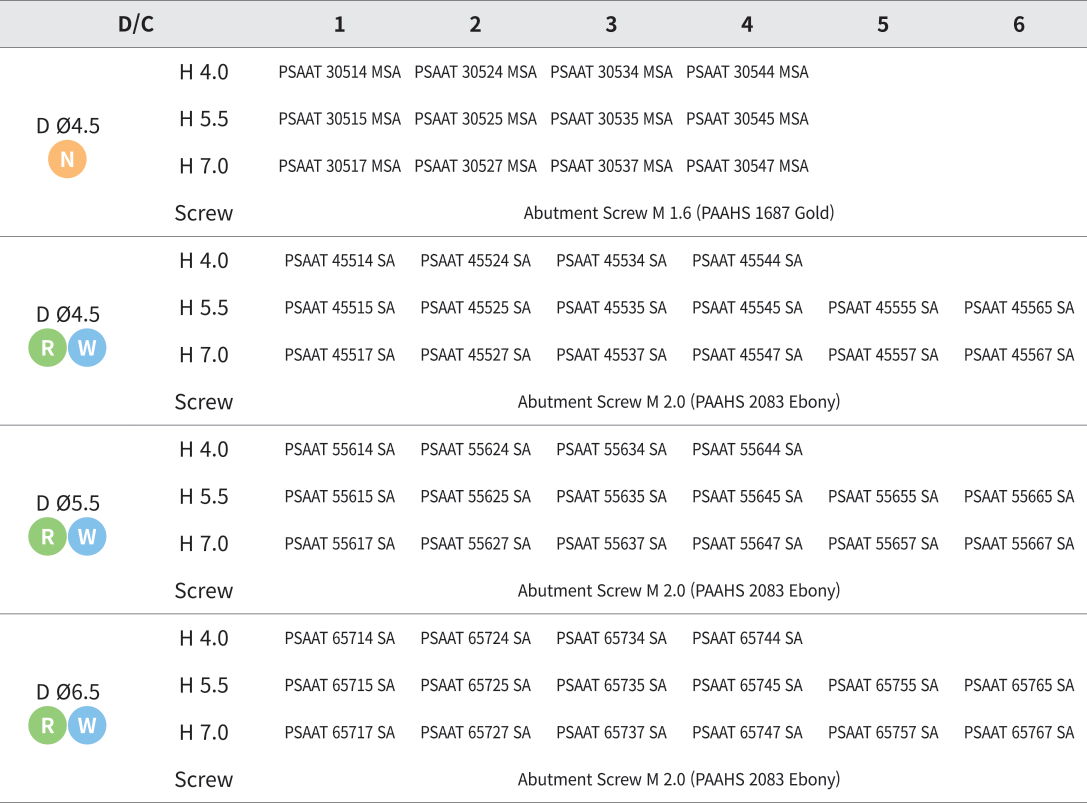

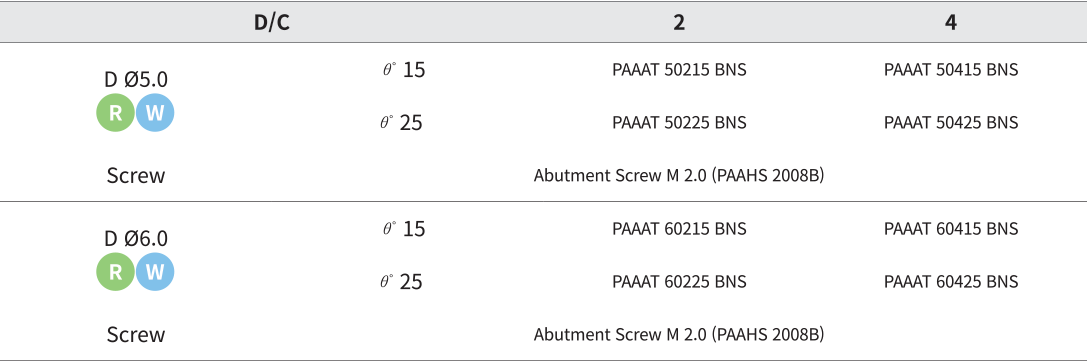

Angled Abutment (Hex)
A-Type

Fastening torque : Narrow 20Ncm
Regular / Wide 30Ncm

Angled Abutment (Hex)
B-Type

Fastening torque : Narrow 20Ncm
Regular / Wide 30Ncm

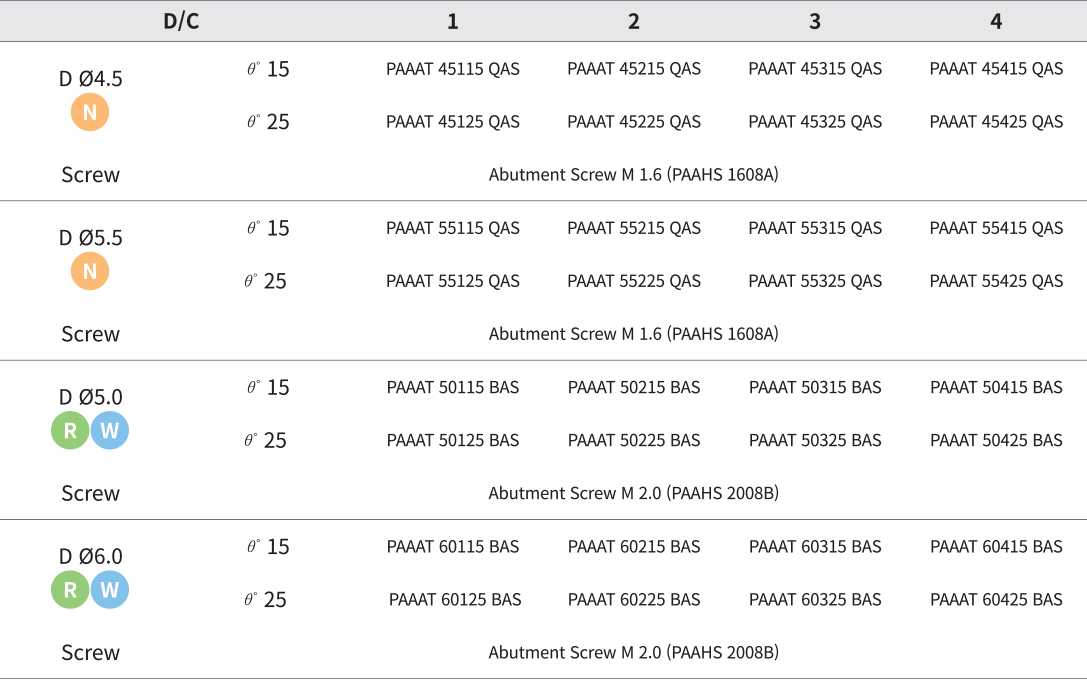

Angled Abutment (Non-Hex)

Fastening torque : Narrow 20Ncm
Regular / Wide 30Ncm

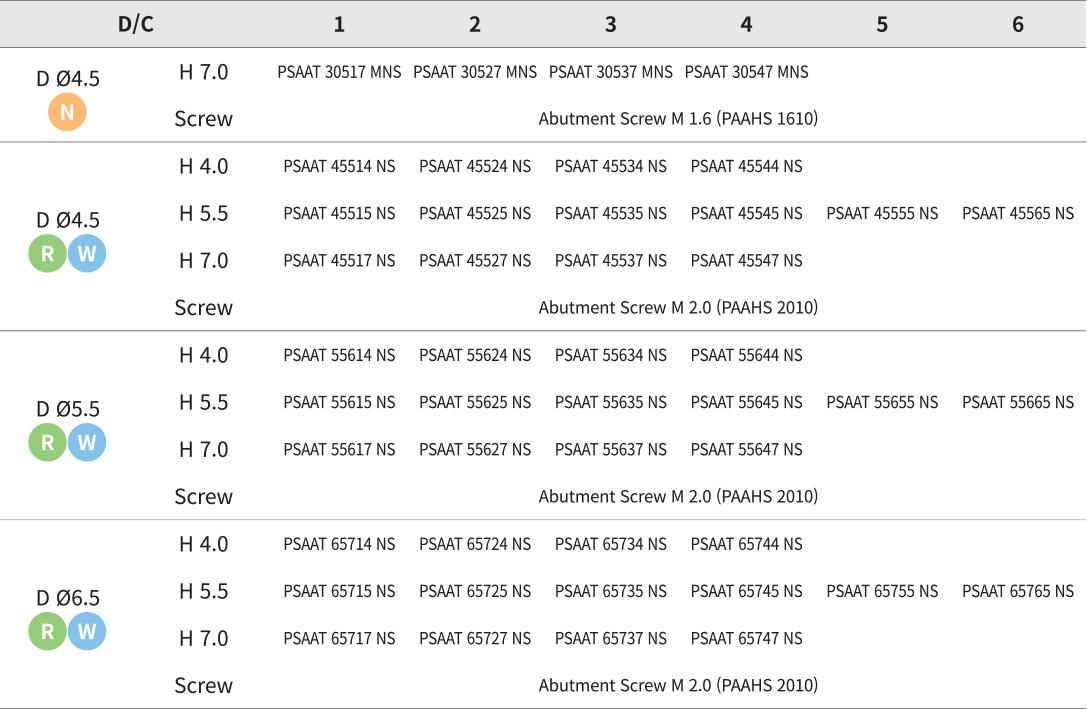

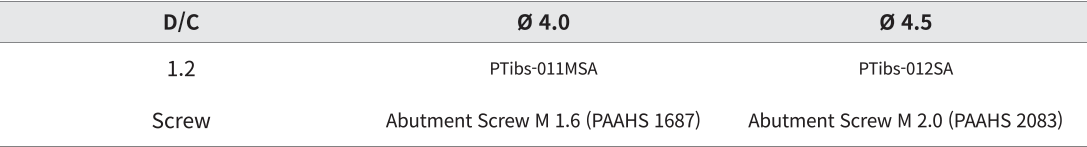

Ti-base Abutment

Transfer Impression Coping (Hex)

A Transfer type with utilizing a close tray

Packing unit : Impression coping body+Guide Pin

Hex Type

Transfer Impression Coping (Non-Hex)

A Transfer type with utilizing a close tray

Packing unit : Impression coping body+Guide Pin

Non-Hex Type

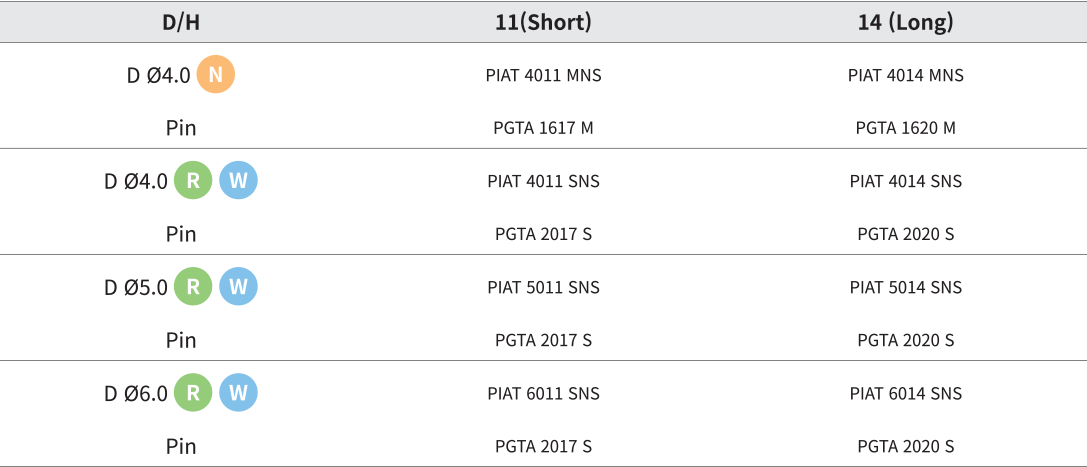

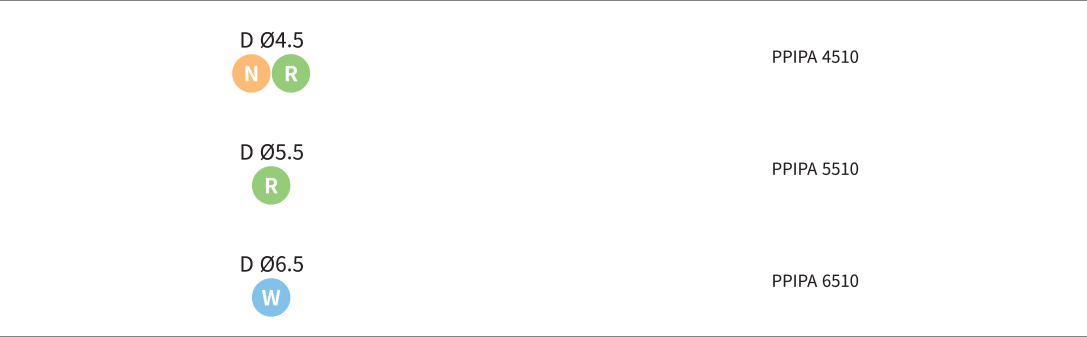

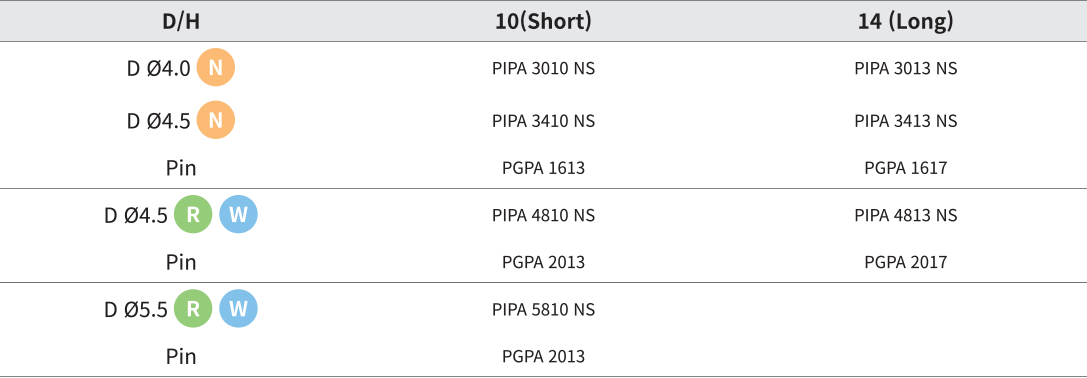

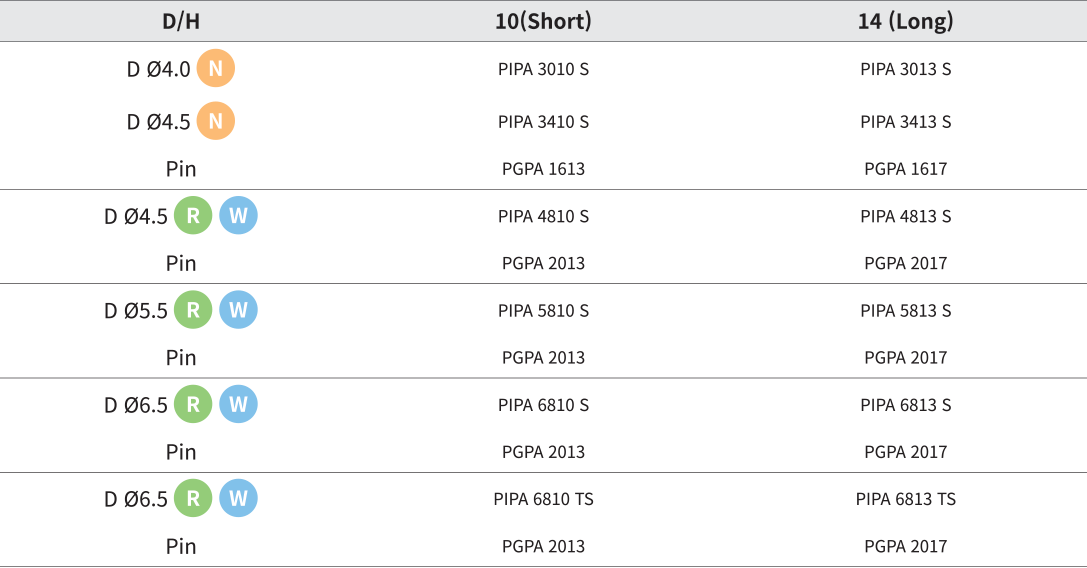

Pick-up Impression Coping (Hex)

A Pick-up type with utilizing a custom tray.

Increasing convenience with being composed of Short & Long

Pick-up Impression Coping (Non-Hex)

A Pick-up type with utilizing a custom tray.

Increasing convenience with being composed of Short & Long

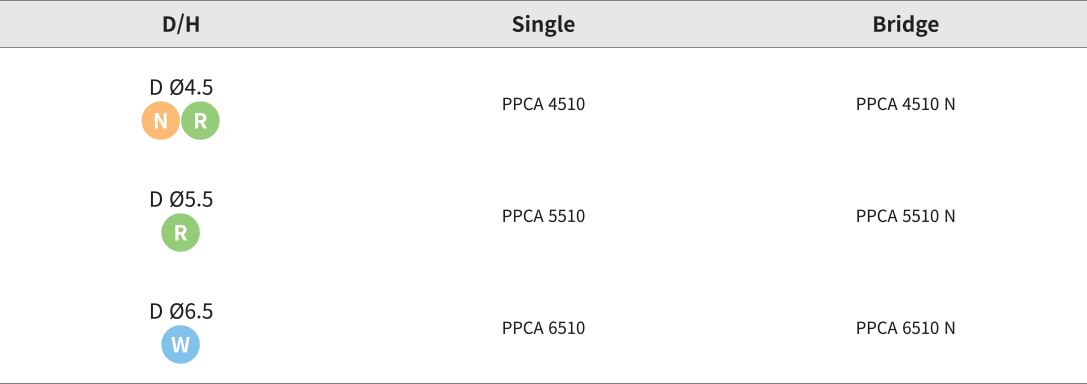

Plastic Impression Coping

Plastic Coping

A replication of the master model and manufacture a prosthesis with joining a abutment

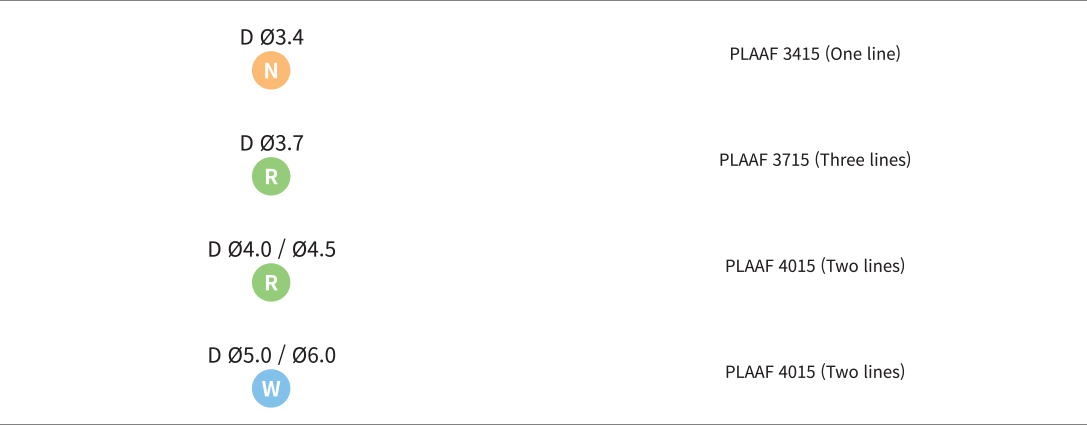

Fixture Lab Analog

A replication of the master model and manufacture a prosthesis with joining an abutment

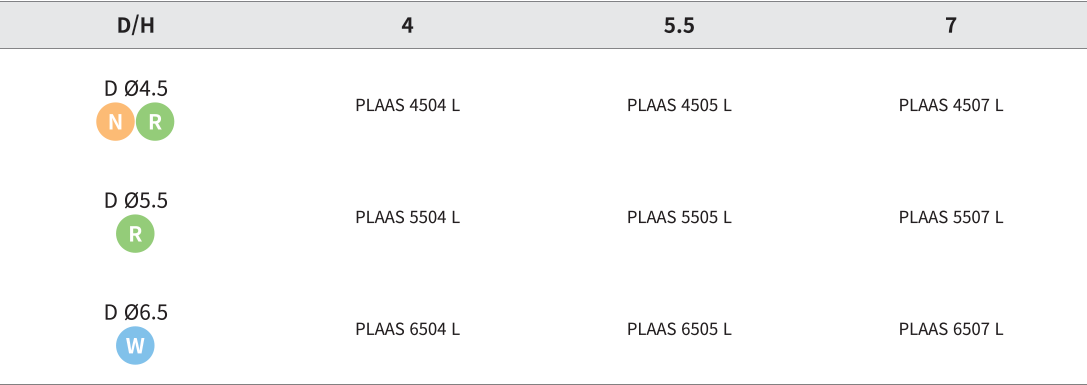

Solid Lab Analog

Integrated type of abutment & analog

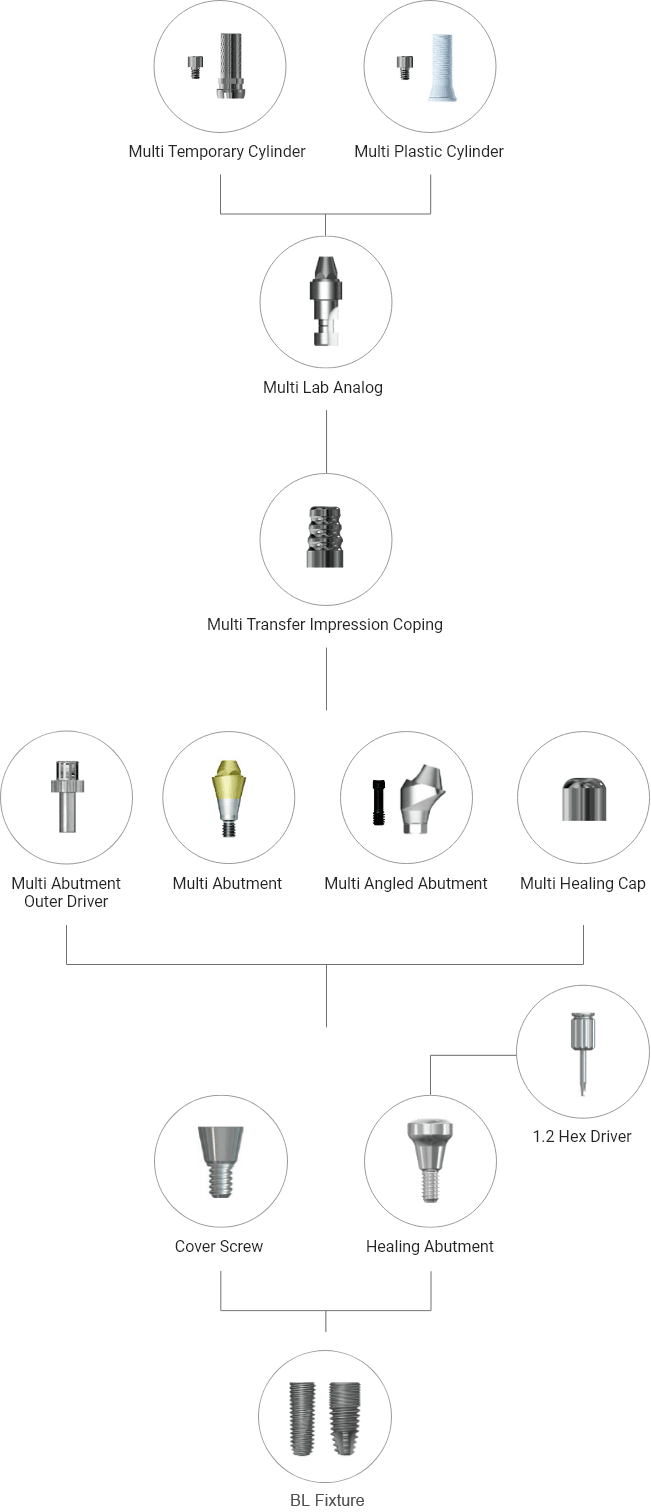

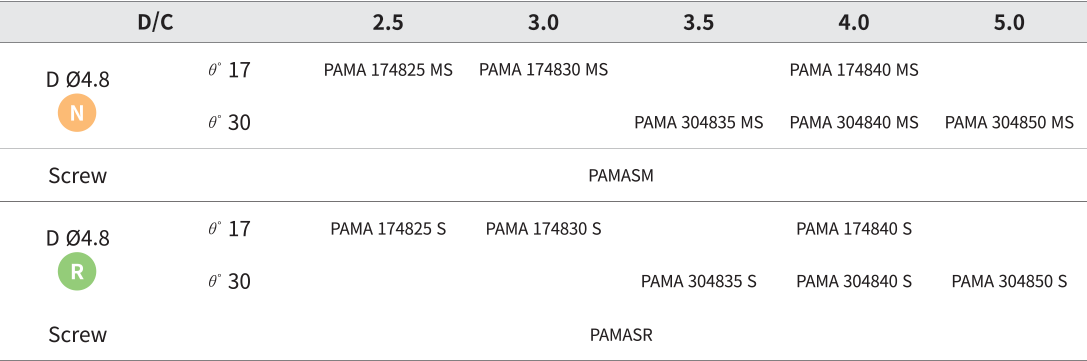

Multi Angled Abutment (All-on-4)

Used in implant path compensation in screw retained multiple case

Up to 60° path compensation (two implant standard)

Recommended tightening torque : 20Ncm(Narrow), 30Ncm(regular)

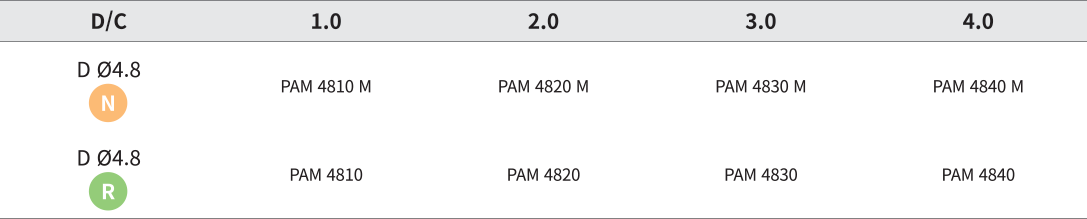

Multi Abutment

Uses specialized outer driver (AMOD)

Used in screw type prosthetics in multiple cases

Recommended tightening torque : 30Ncm

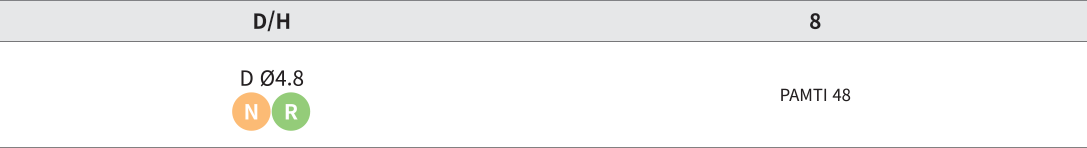

Multi Temporary Cylinder

Used in producing temporary prosthetic with multi abutment (Material: Ti Gr-3)

Structure allows for easy customization and minimization of indication constraints

1.2 hex driver

Recommended tightening torque : 20Ncm

Packing unit : cylinder + Ti screw

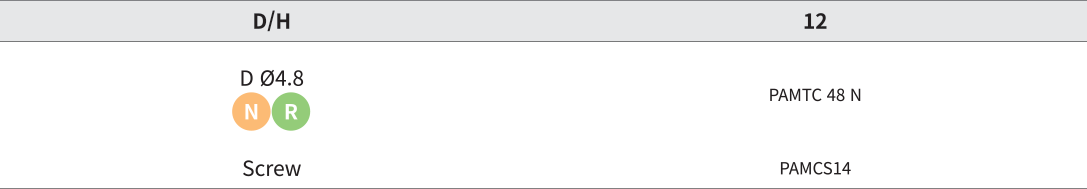

Multi Transfer Impression Coping

Takes impression using closed tray

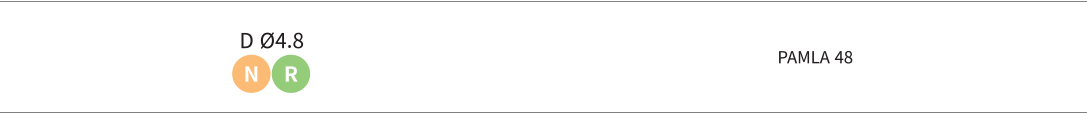

Multi Lab Analog

Achieves Multi abutment of the oral cavity on a working model

Multi Healing Cap

Used when protecting multi abutment in the oral cavity and minimizing foreign body sensation in patient

1.2 hex driver

Recommended tightening torque : 20Ncm

Multi Plastic Cylinder

Produces prosthetics by casting with dental-grade alloy (gold, non-precious metals)

Connection region’s precision is reduced compared to gold cylinder

1.2 hex driver

Recommended tightening torque : 20Ncm

Packing unit : cylinder + Ti screw

Multi Abutment Outer Driver

Torque driver specialized for multi-abutments

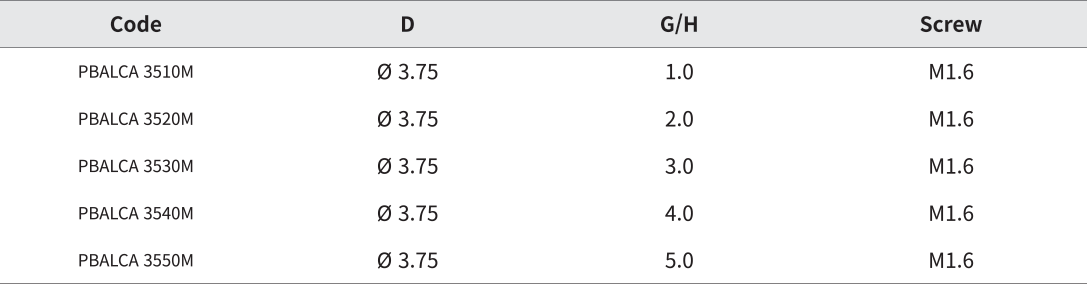

Locator Abutment (Narrow)

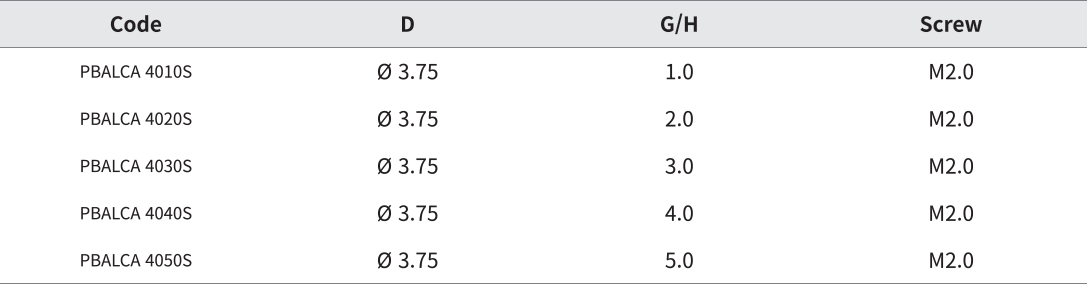

Locator Abutment (Regular)

Denture Cap

Packing unit : Metal Replacement Male

Denture Cap

Packing unit : Blue Replacement Male

Retention Force : about 10±5N

Denture Cap

Packing unit : Pink Replacement Male

Retention Force : about 20±5N

Denture Cap

Packing unit : Clear Replacement Male

Retention Force : about 30±5N

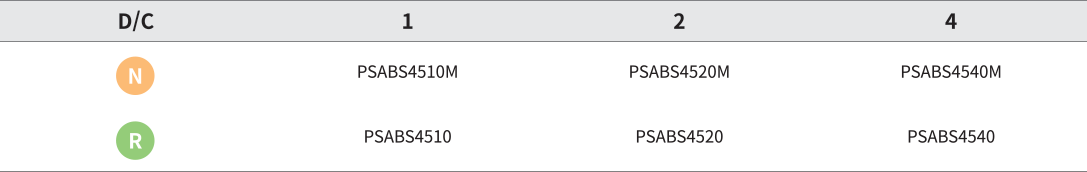

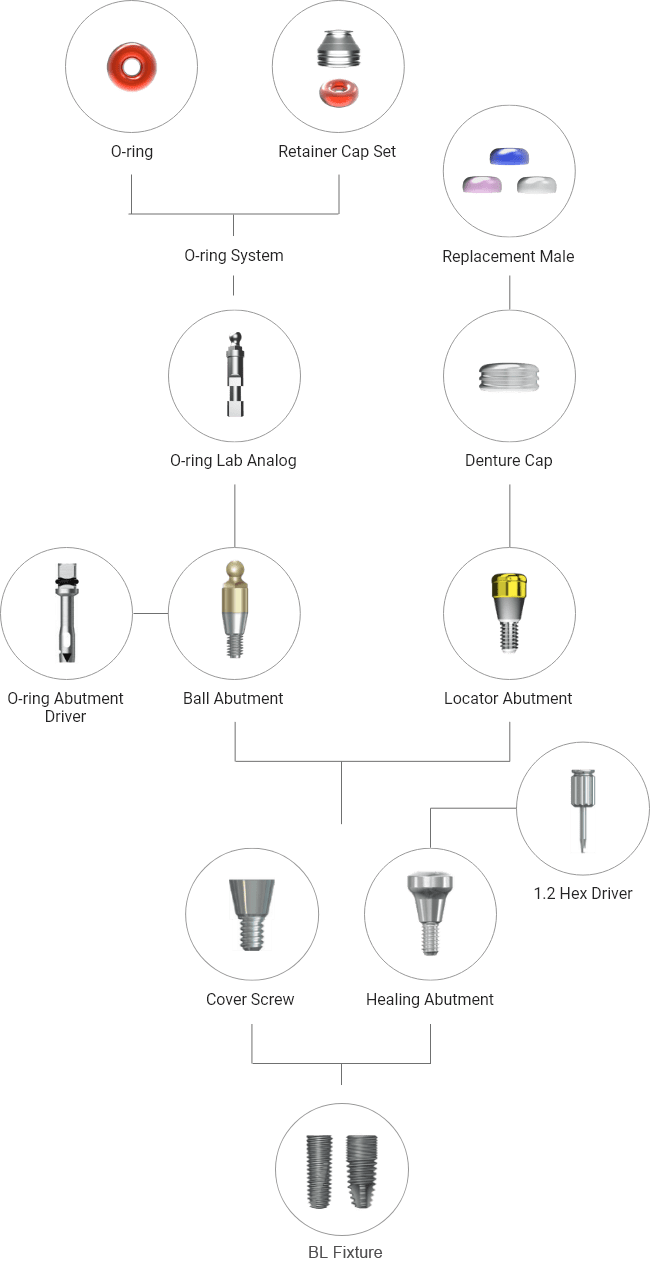

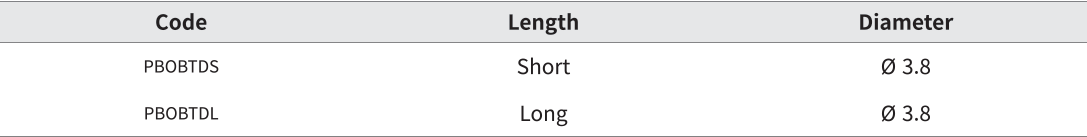

Ball Abutment

Retainer Cap Set

Packing unit : Retainer cap + O-ring

O-ring

Packing unit : O-ring 1 piece

O-ring Lab Analog

Make Oral Ball abutments on the working model

Packing unit : Lab analog

O-ring Abutment Torque driver
